◆ Injection volume 50ul-20ml, suitable for semi-preparative chromatography ◆ Sample tray optional 96 x 9ml or 42 x 25ml ◆ Very small motor step, so that the single-step error control within 0.065 microliters ◆ The program design of eliminating gaps ensures excellent injection accuracy and linearity, so that the injection has high reproducibility. ◆ Unique inner and outer needle cleaning structure ensures extremely low sample residue <1%% ◆ Sample loading can be repeated in advance, which can improve the purification speed of samples and reduce solvent consumption. ◆ Equipped with EasyChrom workstation can realize online modification of operation method and more functions

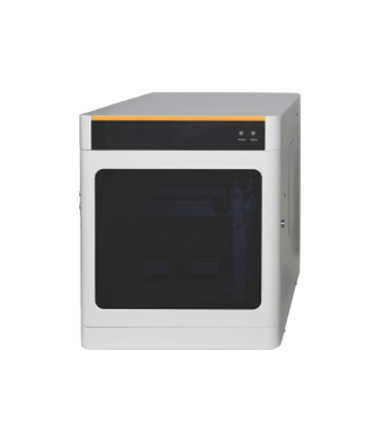

Autosampler, Semi-preparative Model ASD1000 | |
Tray Type | 96-bit×9mL Test Tube; 42-bit×25ml Tube Optional, Default 96 Bits 20-bit×25mL Centrifuge Tube; 64-bit×15ml Centrifuge Tube Optional |
Injection Volume | 50ul-20ml（Increment 1ul） |
Injection Precision | ＜1% |
Injection Accuracy | ±2% |
Linearity | >0.9998 |
Residual Effect | ＜1%%（Perform Cleaning Procedure Before and after Sample Injection） |
Applicable Pressure | ＜20Mpa |
Injection Cycle Time | ＜32s（Suction 5ml, normal speed） |
Communication Mode | RS232、USB |
Size | 525×340×400mm（L×W×H） |
weight | 26kg |
Autosampler, Semi-preparative Model ASD1000 | |
Tray Type | 96-bit×9mL Test Tube; 42-bit×25ml Tube Optional, Default 96 Bits 20-bit×25mL Centrifuge Tube; 64-bit×15ml Centrifuge Tube Optional |
Injection Volume | 50ul-20ml（Increment 1ul） |
Injection Precision | ＜1% |
Injection Accuracy | ±2% |
Linearity | >0.9998 |
Residual Effect | ＜1%%（Perform Cleaning Procedure Before and after Sample Injection） |
Applicable Pressure | ＜20Mpa |
Injection Cycle Time | ＜32s（Suction 5ml, normal speed） |
Communication Mode | RS232、USB |
Size | 525×340×400mm（L×W×H） |
weight | 26kg |
